Wii Troubleshooting

The following diagrams illustrate the Wii's boot process, what may go wrong with it, and how SaveMii can help. The images are clickable.

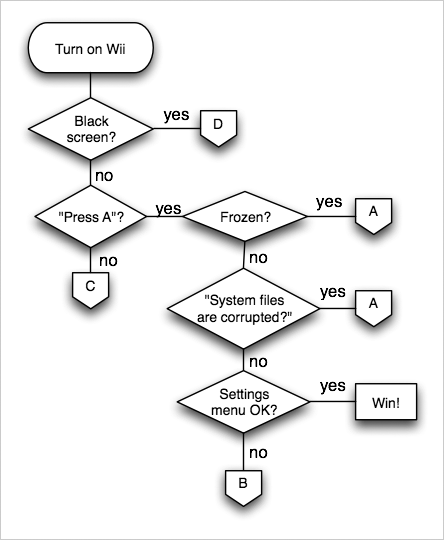

Main Diagnostic

Main Diagnostic Diagram

go to Branch D go to Branch C go to Branch B go to Branch A go to Branch A

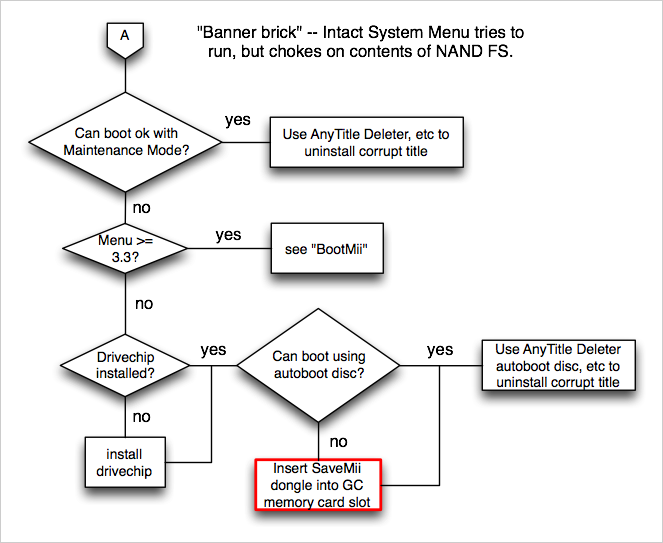

Branch A: “Banner Brick”

Diagram Branch A

go to Branch D

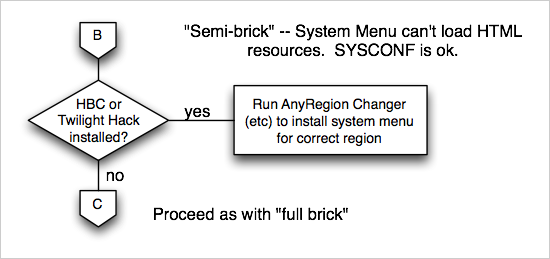

Branch B: “Semi Brick”

Diagram Branch B

go to Branch C

Branch C: “Full Brick”

Diagram Branch C

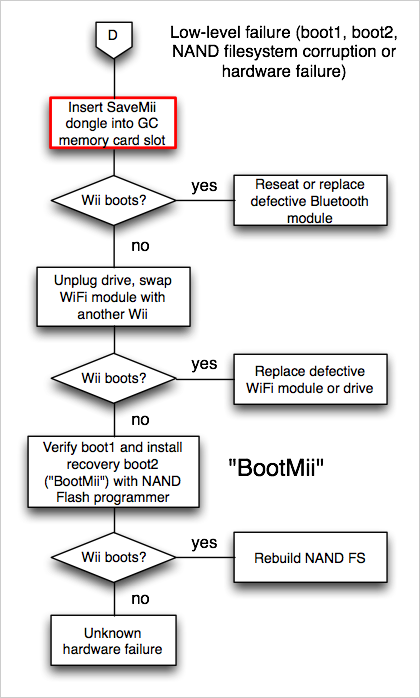

Branch D

Diagram Branch D
